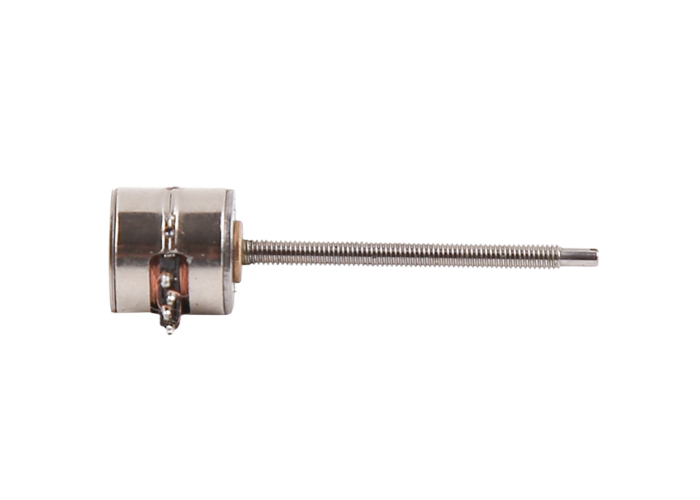

2 phase 4 wire Micro stepper motor lead screw 8mm mini linear Stepping Motor

VSM0810 is a precision micro stepping motor body outer diameter 8MM, body length 8.2MM, shaft outer diameter 1MM, the shaft length can be changed according to the needs, and can be equipped with gears, pulleys,
Corresponding output devices such as worm and screw.
The motor has a basic step angle of 18 degrees and the motor runs 20 steps per week.
Because of its small size, high precision, and easy control, this miniature stepper motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields.

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

At the same time, we can match the corresponding drive system to meet the needs of customers!

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

This miniature motor is mainly used in cameras, lenses, optical instruments and other fields. The light needle is relatively small in size and the control is very precise. The needs of customers are the direction of our efforts, and meeting the needs of customers will be our highest pursuit. If you have needs, please feel free to keep in touch with us.

8mm micro stepper motor parameter sheet:

8mm micro stepper motor outside drawing:

Product display:

8mm Screw Stepper Motor 5V DC 2 Phase 18 Degree Step Angle Micro Stepper Motor

The principle of stepper motor is as follows:

1. The stepper motor is controlled by pulse signal. Each time a pulse is input, the stepper motor is pushed forward one step.

2. The rotation step angle of the stepping motor is based on the structure of the motor and is realized in a certain proportion.

3. In practice, there will be slight differences in the rotation step angle of the motor. This is because the structure of the motor is fixed, and the total number of poles will not be accumulated, and the higher the processing accuracy will be. In general, the step angle of an industrial hybrid stepper motor is 1.8°, or 200 poles.
