10mm Micro slider Linear Stepping Motor 3V DC Screw Micro stepper motor with Bracket Linear Stepper Motor:

VSM1065 is a special precision micro stepping motor (or linear stepping motor),
The moving speed can be controlled by the driving pulse frequency of the precision micro stepping motor, and the moving distance can be controlled by the driving pulse number of the precision micro stepping motor. For this typical motor, when the motor drives the 2-2 phase, one pulse makes the slide move 0.02mm. For this type of motor, as shown in the photo, the basic slide is a gold unit, and you can also customize the slide of any other material or shape.
10mm diameter motors are widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields because of their small size, high accuracy, easy control and other excellent characteristics.
The motor input part is FPC, but can be changed to the form of connecting wire, pin pin, printed circuit board, etc. according to customer requirements.
In addition, the stepping motor can accurately control the speed and number of revolutions, which also determines the moving speed of the slider, and the moving position is accurate and controllable. The position accuracy can be controlled within 0.05mm.

Main Application

1) Camera Lens

2) Optical instruments

3) Precision medical devices

4) beauty equipment

5)vending machine

Other precise control application

10mm M2 lead screw slider stepper motor Specifications:

Drawing of 10mm plastic slider stepper motor with 36.6mm stroke:

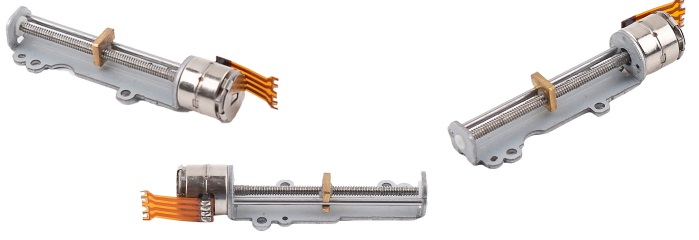

Product display for 10mm plastic slider stepper motor:

10mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor

Customers can customize content:

1. In terms of product outer diameter, different sizes such as 6 8 10 15 20 25mm can be selected according to the customer's use environment, space strength, etc.

2. The outlet position of the motor can be freely selected within a 360-degree range, so as to meet the installation requirements in the best state. At the same time, Connector can choose lead wire, PCB, FPC bare pin.

2. According to the requirements of customers, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the screw,.

usually the maximum length of the M2 screw can be 50mm, the M3 screw can be 100mm, and the M4 screw can be 100mm. Can do 150mm. The use of a lead screw with an excessively large diameter for a small motor consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally made of plastic, which is easy to form and economical.

When the customer has special use environment and requirements, the slider can also be made of metal parts.

Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.

Some informations about us:

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
