2 Phase 3.3vDC Micro Slider Stepper Motor 10mm Mini Slider Screw Linear Stepper Motor:

The basic step angle of this motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is used to meet the requirements.

This is a stepper motor equipped with a bracket, a lead screw and a relative motion slider. Mounting brackets can be replaced according to customer requirements.
Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw drives the slider to move back and forth. This conveniently provides actions such as forward and backward. The stepping motor can precisely control the speed, the number of revolutions, etc., which determines the movement speed of the slider, and the movement position is precisely controllable. The positioning accuracy can be controlled within 0.05mm.

The input part of the motor is FPC, which can be changed to the form of connecting wire, PCB, etc. according to customer needs.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

10mm M2 lead screw slider stepper motor Specifications:

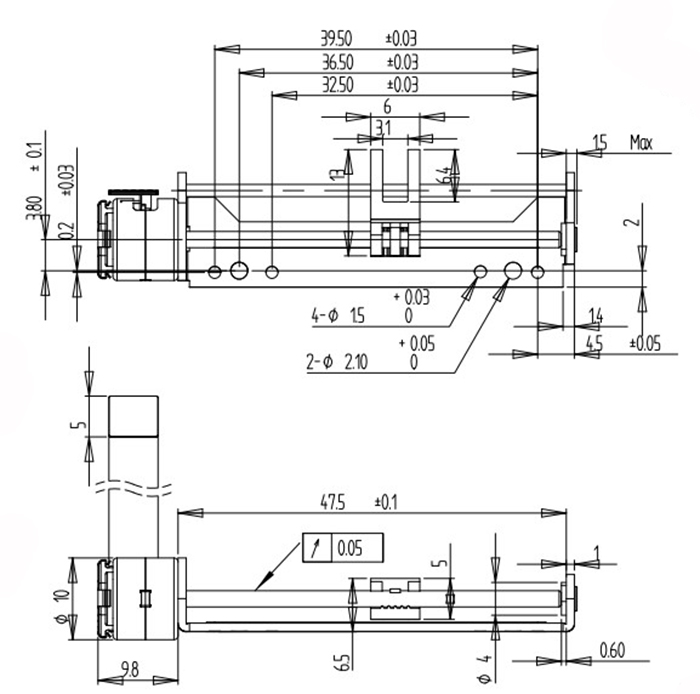

10mm stroke 40mm plastic slider stepper motor specifications and dimensions:

10mm plastic slider micro stepper motor product display:

Product Usage:

Customers can customize content:

1. The outer diameter of the motor can be selected from 6mm 8mm 10mm 15mm 20mm 25mm according to the customer's use environment and space strength.

2. The outlet position of the motor can be freely selected within a range of 360 degrees to meet the installation requirements in the best state. In addition, the connector can choose lead, PCB, FPC bare pin.

2. The effective stroke of the motor can be customized within a certain range according to customer needs, mainly considering the diameter and length of the lead screw.
Generally speaking, the maximum length of M2 screws can be 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. Can also do 150mm. Because a small motor uses a lead screw that is too large in diameter, it consumes a lot of power. Therefore, customers should also consider comprehensively when choosing a motor.

4. The material of the slider is generally plastic, which is easy to form and the price is affordable.
If the customer has special use environment and requirements, the slider can also use metal parts.
Of course, the cost of the slider will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.
