20mm M3 lead screw slider stepper motor features:

This is a stepper motor with a moving slider with a bracket and a lead screw.

Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw will drive the slider to move back and forth. This makes it easy to provide actions such as forward and backward. In addition, the stepper motor can also precisely control the speed, the number of revolutions, etc., and also determines the movement speed of the slider, and the movement position is accurately controllable. The positioning accuracy can be controlled within 0.05mm.

The above motor features are widely used in beauty equipment, medical equipment, vending machines, rapid testing and other fields.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

20mm M3 lead screw slider stepper motor Specifications:

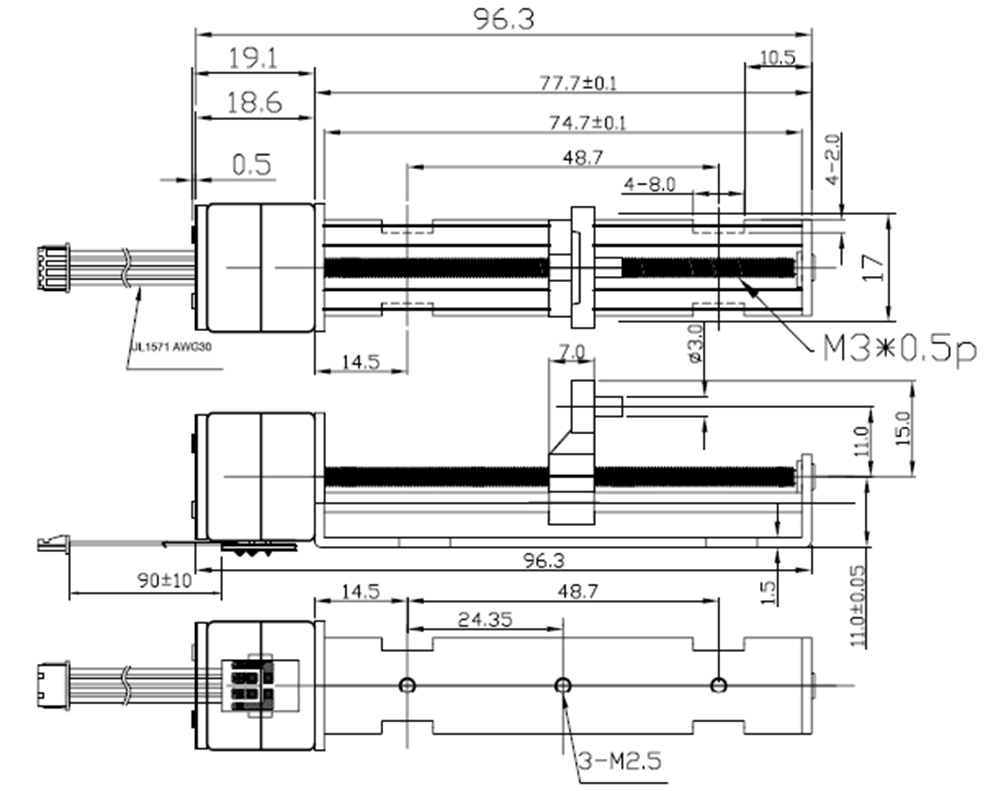

Drawing of 20mm plastic slider stepper motor with 63mm stroke:

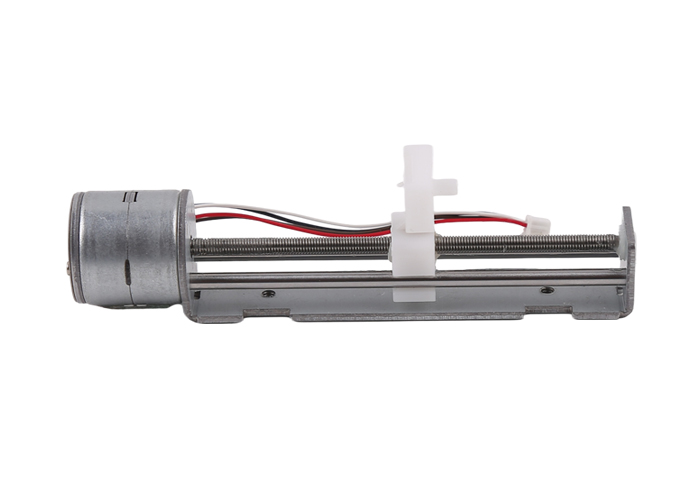

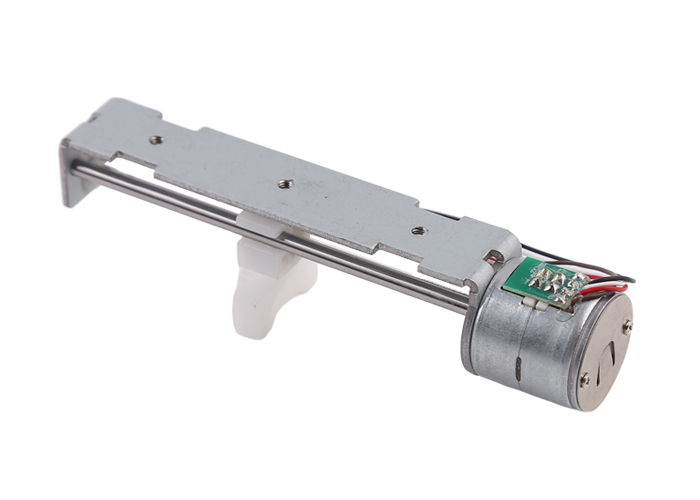

Product display for 20mm plastic slider stepper motor:

Customers can customize content:

1. The outer diameter of the product can be selected in different sizes such as 6 8 10 15 20 25mm according to the customer's use environment and space strength.

2. The outlet position of the motor can be adjusted freely within a 360-degree range to achieve the best state to meet the installation requirements. At the same time, the connector can also choose lead, PCB, FPC bare pins.

2. The effective stroke of the motor can be customized within a certain range according to customer requirements, mainly considering the diameter and length of the lead screw.
Usually the maximum length of M2 screws can reach 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. Can do 150mm. The micro motor uses a lead screw with an excessively large diameter and consumes a large amount of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally plastic, which is easier to form.
If the customer has special use environment and requirements, the slider can also use metal parts.
Of course, the cost will be higher, which needs to be determined according to the customer's requirements for the shape and size of the slider.

Packaging diagram:
