Gear Ratio 1.8° Step Angle NEMA 17 Hybrid Motor with Planetary Gearbox

Description:

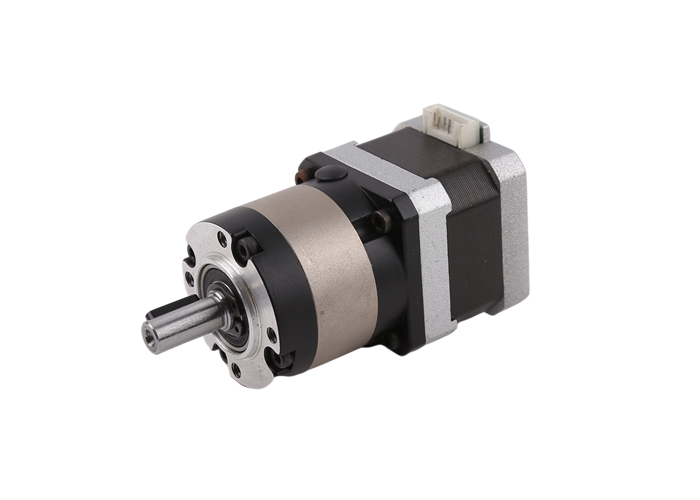

This is a NEMA 17 hybrid stepper motor with a planetary gearbox.

A variety of gear ratios and motor lengths are available.

Motor length is related to torque, and gearbox length is related to gearbox class and transmission ratio

We have different motor lengths for your choice, from 25mm to 60mm

In addition, we have different transmission ratios for you to choose from.

The larger the gear ratio, the slower the motor speed, the greater the output torque.

Gearbox information:

Motor parameters:

Design drawing:

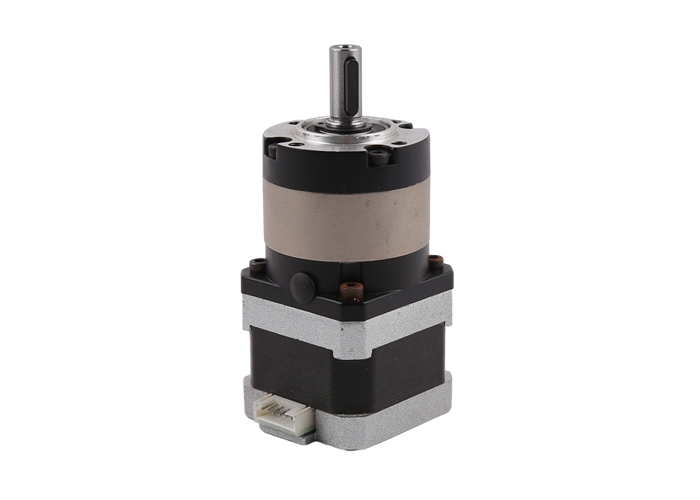

Product display:

Application of stepper motors:

Stepper motor is used for precision control, it is widely used in medical equipment, 3D printers, industrial precision control, automation equipment, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
