High precision SM20-34L-T brass slider M3 lead screw linear stepper motor

Description:

This is 15mm diameter PM stepper motor attached with a brass slider.

There are two linear bearings on motor’s slider, and they provide strong support to the slider, and make sure slider moving fluently.

Motor’s slider is made from CNC machine work, so the cost is much higher than plastic sliders.

(Plastic POM sliders are made from injection mold)

Customers can choose plastic sliders if you want to save cost.

Lead screw is regular M3*P0.5 screw, and the lead screw length is adjustable.

Motor’s stroke/travel distance is determined by lead screw length.

Parameters:

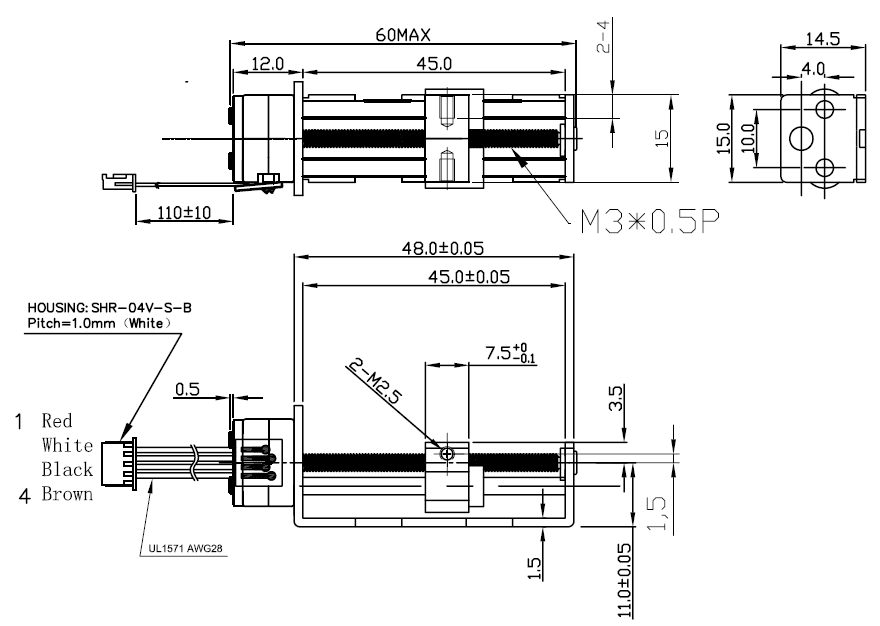

Design drawing:

Product display:

About linear stepper motor with slider:

Our slider motor is a full set of assembly including motor + lead screw + bracket + slider.

Motor’s step angle is generally 18°/step, which means 20 steps for each turn.

When motor rotates one turn, slider moves one lead.

For single start lead screws: pitch =lead.

So the step length is (step length means linear movement slider travels, when the stepper motor take exactly one step):

Lead screw lead/steps of each rotation

For example if lead screw is M2*0.4P (0.4mm pitch regular M2 lead screw), step angle of the motor is 18°, step length of this motor is 0.4mm/20=0.02mm/step.

Also, lead screw length is customizable, and we also need to adjust bracket’s design, if you customize lead screw length.

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
