6mm micro slider screw stepper motor 4.6V DC pm stepper motor of Camera Lens linear stepper motor:

This is a small stepper motor equipped with a bracket, lead screw and relative motion slider.

Since the output shaft of the motor is a lead screw, during the rotation of the lead screw, the lead screw drives the slider to move back and forth. This conveniently provides actions such as forward and backward. In addition, the stepping motor can precisely control the speed, the number of revolutions, etc., which also determines the movement speed of the slider, and the movement position is accurately controllable.

Due to its excellent characteristics such as small size, high precision and easy control, this miniature stepping motor is widely used in beauty equipment, medical equipment, vending machines, rapid detection, cameras, optical instruments, lenses, precision medical equipment, automatic doors locks, etc.
The input part of the motor is a PCB, but it can be changed to the form of connecting wire, FPC, etc. according to customer needs.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

6mm M2 lead screw slider stepper motor Specifications:

Drawing of 6mm plastic slider stepper motor with 6mm stroke:

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

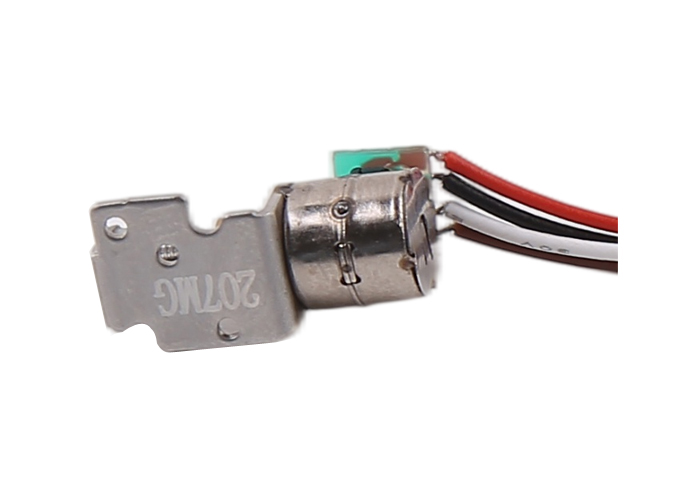

Product display for 6 mm plastic slider stepper motor:

6mm mini linear motor 4.6V DC micro slider screw stepper motor of Camera Lens

Customers can customize content:

1. The outer diameter of the motor can be selected in different sizes such as 6 8 10 15 20 25mm according to the customer's use environment and space strength.

2. The outlet position can be freely selected within a 360-degree range to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.

2. According to customer requirements, the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the lead screw.

Usually the maximum length of M2 screws can be 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. 150mm can also be achieved. Small motors use lead screws with too large diameters, which consume a lot of power. Therefore, customers should consider comprehensively when selecting motors.

4. The material of the slider is generally plastic, which is easy to form and economical.

When customers have special use environment and requirements, the slider can also use metal parts.

Of course, the cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.

Packaging and Shipping Diagram:

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
