25mm PM linear stepper motor with run through lead screw

SM25-Linear stepping motor with lead screw, when the rotor is running CW or CCW, the lead screw will move forward or backward. At the same time the lead will rotate.

The motor step angle is 7.5 degrees and 15 degrees.

Each step of the stepping motor rotates, the lead moves 0.0127mm (or 0.0254mm, 0.0508mm, 0.1016mm. There are different lead pitches and step angles for selection.

This product is the company's patented product. Through the relative motion of the inner rotor and the screw, the rotation of the motor is converted into linear motion. Mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.

In addition, the external wiring part can use four binding posts (light pins) or connecting wires, or FPC FFC PCB according to customer requirements.

The output section is linear.

Stepper motor parameter data sheet

Motor thrust force curve:

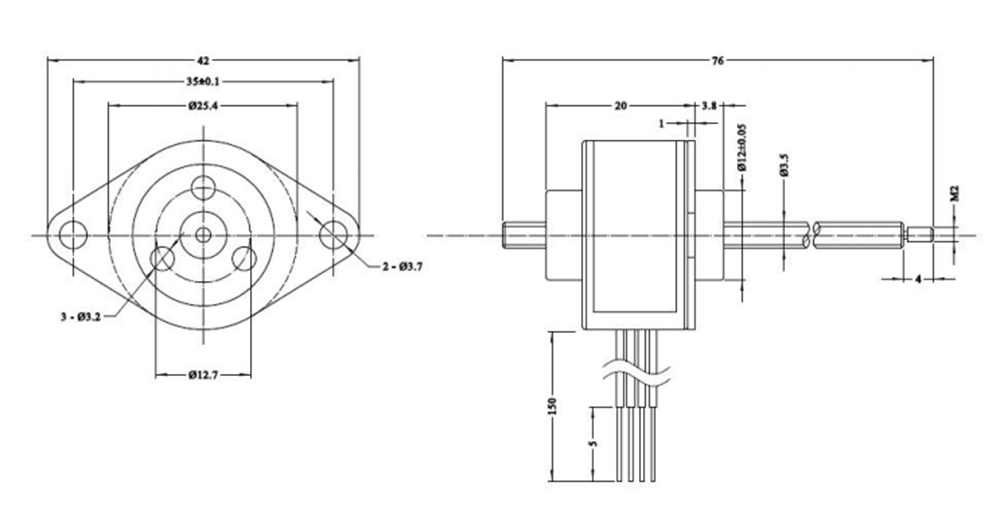

Motor out drawing:

Product display:

Our team has more than 10 years of stepper motor design, development and production manufature experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
