    5VDC Linear Stage Stepper Motor 10mm Screw Subdivision Stepper Motor 18 degree Step angle

    Ask Lasest Price
    Brand Name : V-motor
    Model Number : SM10 Linear stepper motor
    Certification : RoHS
    Price : US$3~7.5
    Payment Terms : L/C, T/T
    Supply Ability : 100000/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    5VDC Linear Stage Stepper Motor 10mm Screw Subdivision Stepper Motor 18 degree Step angle

    5v linear stepper motor micro 10mm screw subdivision stepper motor


    SM10 is our company's special product. Stepper motor with lead screw with anti-rotation bracket. A rotor with a nut, when the rotor is turned clockwise or counterclockwise, the lead screw will advance or retreat.


    Through the relative motion of the inner rotor and the screw, the rotation of the motor is converted into linear motion.
    The step angle is 18 degrees, the lead spacing is 1mm, and the length of the connecting line can be customized according to customer requirements.


    Widely used in valve control, automatic buttons, medical equipment, textile machinery, printers, robots and other related fields.


    Working temperature: -40℃-60℃


    Motor direction: CW & CCW



    Stepper motor parameter data sheet


    Product name

    Linear stepper motor

    ModelSM10 Linear stepper motor
    Resistance10±7% ohm/Phase
    NO.of phases2 Phase
    Voltage5V DC
    Pull out thrustMore than 80gf AT 500 pps
    Step angle18 ° /Step
    Max response frequencyMotor Than 1200 pps
    Max starting frequencyMotor Than 1000 pps
    Insalution classCLASS E FOR COILS
    OEM & ODM ServiceAVAILABLE

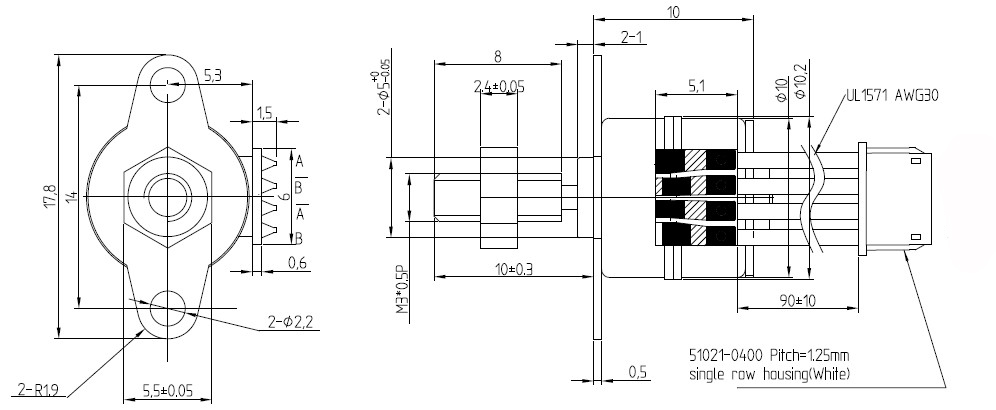

    Motor out drawing:

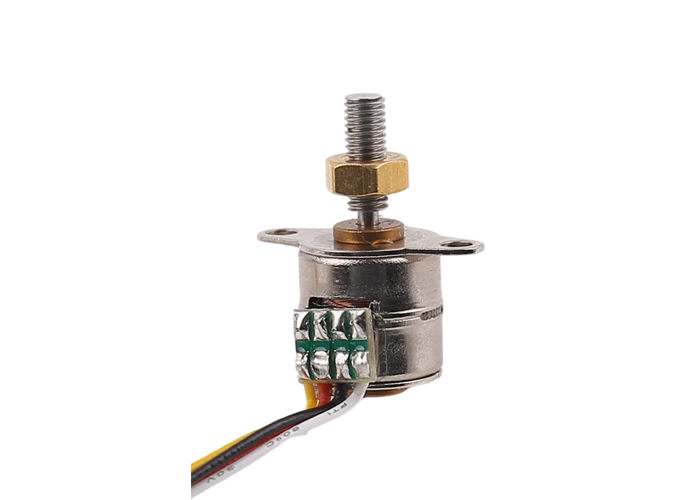

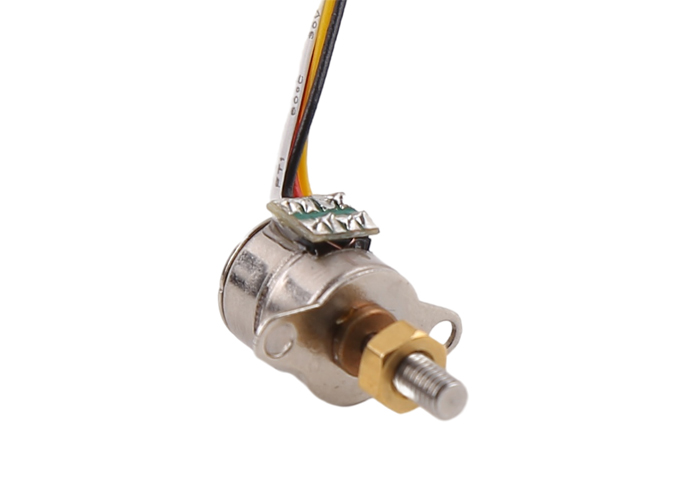

    Product display:

    5V DC captive shaft linear actuator lead screw



    Please feel free to email me if you need our motors.


    Packaging and Shipping Information:




    Packing: single carton/box packing, sample packing box size: 28*17*16cm
    Packaging according to quantity
    Shipping time:
    DHL: 5~7 working days;
    UPS: 5~7 working days;
    TNT: 5~7 working days;
    FedEx: 7~9 working days;
    EMS: 12~15 working days;
    China Post: Depends on which country it is sent to;
    Sea: depends on which country the ship goes to



    patent certificate:
