Electronic glass door lock horizontal gearbox DC brushed motor with gear

Description:

This is a DC motor attached with a gearbox. This is a 300 DC brushed motor attached with gearbox. Motor’s diameter is 24mm.

About gearbox, it’s a 26:1 gear ratio horizontal gearbox, and output gear has 20 teeth, and gear modulus is 0.8

Motor’s original unloaded speed is about 6800 RPM, and with a 26:1 gearbox, output speed (unloaded) is about 260 RPM.

This motor is used on glass door locks, and other electronic locks.

Motor Parameters:

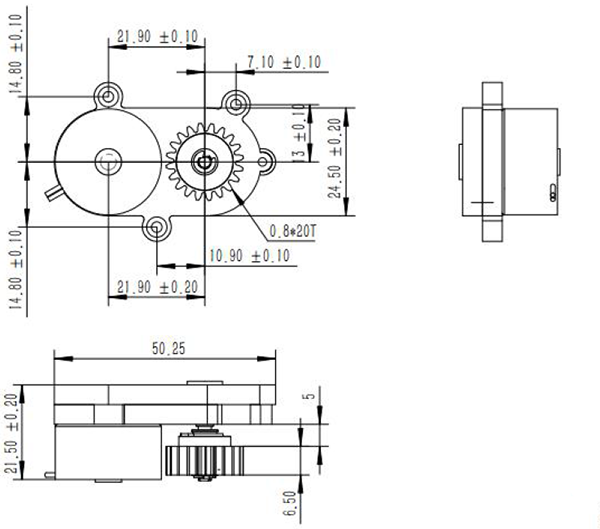

Design drawing:


Product display:


About DC brushed motors:
DC brushed motors are most commonly used motors on the market.
It has electrical brush inside, and it has positive and negative pins (+ and -)
DC motor’s speed can be controlled with different gear ratios, or PWM control. (Pulse-Width Modulation)
With gearbox torque boost, DC motor can reach much higher torque, compared to motor’s original torque.
Advantage of DC brush motors:
1. Cheap price
2. Small size
3. Easy to connect, easy to use
4. Commonly used
5. Fast speed
6. High efficiency (compared to stepper motor)

DC motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed
We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.
Output torque=original torque*gear ratio* gearbox efficiency
Output speed= original speed/gear ratio

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
