High speed 2:1 to 1000:1 gear ratio N20 DC brushed motor with GB12 gear ratio

Description:

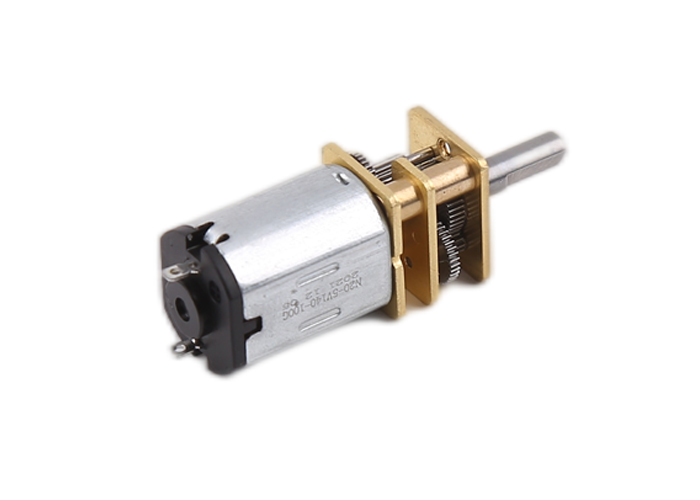

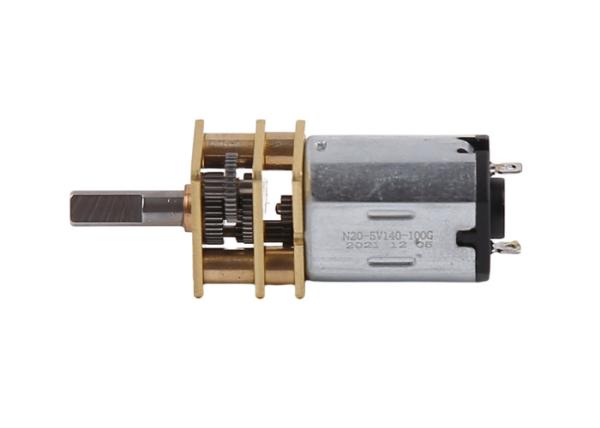

This is a N20 DC motor with gearbox.
N20 is typical brushed DC motor, and for a single motor, unloaded speed is about 15000RPM.
When the motor is attached with a gearbox, it’s speed with be much lower, and its torque will be much bigger.

The gear ratio is 2:1 to 1000:1
For gear ratio below 420:1 (including 420:1), gearbox length is 9mm.
For gear ratio over 420:1, gearbox length is 12mm

Motor Parameters:

Gearbox Parameters:

Design drawing:


Product display:

About DC brushed motors:
DC brushed motors are most commonly used motors on the market.
It has electrical brush inside, and it has positive and negative pins (+ and -)
DC motor’s speed can be controlled with different gear ratios, or PWM control. (Pulse-Width Modulation)
With gearbox torque boost, DC motor can reach much higher torque, compared to motor’s original torque.
Advantage of DC brush motors:
1. Cheap price
2. Small size
3. Easy to connect, easy to use
4. Commonly used
5. Fast speed
6. High efficiency (compared to stepper motor)

DC motor with gearbox:

Gearbox increases motor torque and reduces motor speed

The gear ratio of the gearbox has different gear ratios for you to choose, and the efficiency of the gearbox is also related to the gear.

Output torque = raw torque * gear ratio * gearbox efficiency

output speed = original speed / gear ratio

Packaging and shipping information:

For samples packed with foam sponge in carton.

For mass production, the products are packed in carton boxes.

For sea shipping (mass production), cartons are packed on pallets.

Shipping time:

About express (DHL/UPS/Fedex/TNT): 5~12 days

About 4PX express: 10~20 days

About sea freight: 40~60 days (depending on different countries)
