Small Size Long Life Multiple Gear Ratio High Torque N20 DC Motor With Worm Gearbox And Encoder

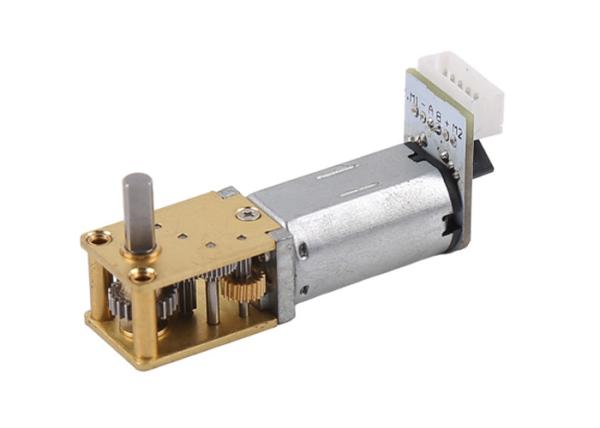

N20 DC gearbox motor with encoder

This motor made of precious metal brushed DC motor with precision metal reducer. worm gear have a small dimension, big gear ratio.

The N20 motor outer diameter 12, flat 10, motor length 15mm (also the gear box can fit N10 N30 motor), the length of the gearbox is18mm, DC motor because of mature technology, low price, simple drive control and widely used in cameras, copiers, door locks, optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the speed is reduced, and it is easy to control!

Our gearboxes are processed and assembled by imported machine tools to ensure that the accuracy of each gear is higher than other manufacturers in the same industry, so the gearbox is stable in transmission, low in noise, high in efficiency, reliable in structure, long in life and quality.

N20 motor parameter data sheet

Motor drawing:

N20 motor torque and speed curve:

this is a typical motor character curve,when change the driving voltage, or change the motor winding parameters, the motor will have a different character,this curve for referance

Product display:

Our team has more than 10 years of stepper motor design, development and production manufature experience, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Packing And Shipping Information

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country

SPECIAL IMPORTANT NOTES!!!

The components of the basic construction (see follow picture)of a DC brush motor include the stator, rotor, brushes and commutator. The interaction of the stator and rotor magnetic fields drives the motor to rotate.

Therefore, when this type of motor starts and runs, sparks are generated at the brush part, and it cannot be used in special occasions.

Please pay attention when selecting it. In addition, the relative movement of the brush and the commutator is easy to wear, so the life of the DC brush motor with ordinary structure is generally not very long, generally 200~2000 hours, and it is carefully selected in places with strict life requirements.

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
