SM35-048 35mm PM stepper motor

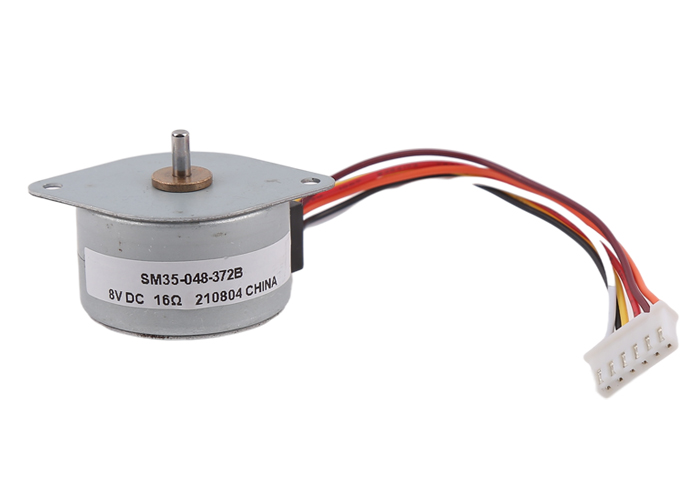

SM35-048-372 is a micro stepping motor with an outer diameter of 35mm.

This model is only a typical product. There are many choices according to the thickness of the motor, step angle, assembly method, etc., and can also be customized according to customer requirements.

The basic step angle of this type of motor is 7.5 degrees (15 degrees are optional), and under the condition of full-step driving, each revolution requires 48 steps. If it is equipped with a gearbox, in the case of the deceleration effect of the gearbox, the final motor angle resolution can reach 0.05~6 degrees, which can meet various needs. The thickness of the motor body also has different thickness options such as 12.5, 15, 22, etc.

Therefore, the product can be used where precise control of the position is required. Generally can be used in medical equipment, printers, automation equipment, robots, etc.

PM stepper motor parameters:

PM stepper motor outdrawing:

Product torque curve:

Product display:

Packing And Shipping Information

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country
