8mm Diameter Micro Slider Screw Length 22mm Micro Slider Stepper Motor Copper Slider With Bracket Linear Stepper Motor:

VSM0806 is a precision micro stepping motor, the output shaft has a lead screw with a pitch of 0.4mm, and the lead screw and the lead screw supported by the lead screw rotate into thrust.
The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week, so the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
In terms of actuators, the subdivision drive method is used to satisfy.
Due to its excellent characteristics such as small size, high precision and easy control, this micro stepping motor is widely used in cameras, beauty equipment, medical equipment, vending machines, rapid detection, optical instruments, lenses, precision medical equipment, automatic doors locks, etc.
The input part of the motor is FPC, but it can be changed to the form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer requirements.

Main Application

1) vending machine

2) Optical instruments

3) Precision medical devices

4) beauty equipment

Other precise control application

8mm M2 lead screw slider stepper motor Specifications:

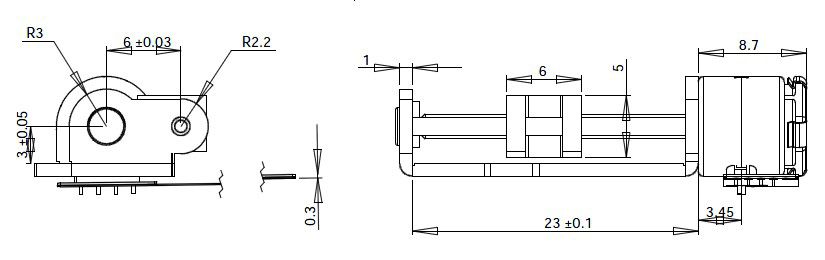

Drawing of 8mm plastic slider stepper motor with 22mm stroke:

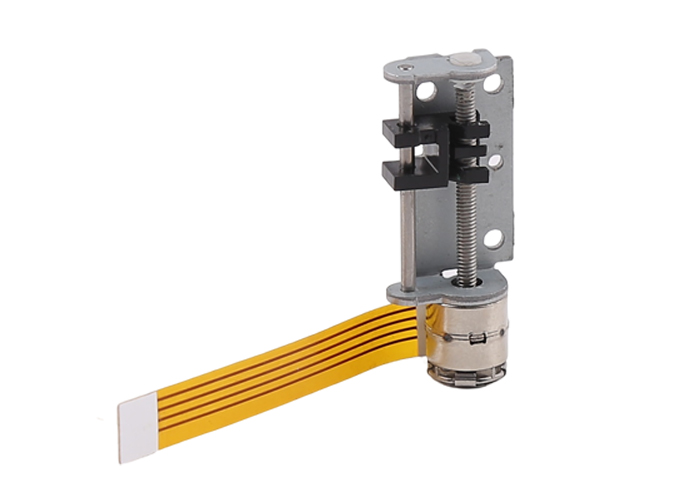

Product display for 8mm plastic slider stepper motor:

8mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor

Customers can customize content:

1. In terms of the outer diameter of the motor, different sizes such as 6mm, 8mm, 10mm, 15mm, 20mm, 25mm can be selected according to the customer's use environment and space strength.

2. Its outlet position can be freely selected within a 360-degree range to meet the installation requirements in the best state. At the same time, the connector can choose lead, PCB, FPC bare pin.

2. The specific stroke is based on customer requirements, and the effective stroke of the motor can be customized within a certain range, mainly considering the diameter and length of the lead screw.

Usually the maximum length of M2 screws can be 50mm, M3 screws can be 100mm, and M4 screws can be 100mm. Can also do 150mm. Small motors use a lead screw with an excessively large diameter, which consumes a lot of power, so comprehensive consideration should be taken when selecting a motor.

4. The material of the slider is generally plastic, which is easy to form and economical.

When there are special use environments and requirements, the slider can also use metal parts.

Of course, the resulting cost will be relatively high, which is determined according to the customer's requirements for the shape and size of the slider.

Wide range of applications:

Packaging diagram:

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
