diameter 25mm pm Geared Stepper Motor 5V Micro stepping gear motor

Description:

The SM25-048S-30G is a 2-phase 4-wire permanent magnet motor with a gearbox on top.

The step angle of this single motor is 7.5 degrees, and it takes 48 steps to make one revolution (without gearbox)

In addition, we have different gear ratios for you to choose, the gear reduction ratio is 1:10 1:15 1:20 1:30 1:60 1:75 1:100 standard, which can be determined according to your needs, the gear of the motor The ratio is 30:1.
So the step angle is 7.5 degrees/30
If you are not sure about the speed ratio you need, you can give me the information about the motor you need, such as the voltage, speed and torque of the motor, and I can recommend it to you based on your needs

NOTED:

The output shaft of the motor can be customized according to customer installation requirements.

application:

Valve application

Household Appliances Air Conditioning

refrigerator smart bathroom

Automatic Door Lock CCTV Monitor

Electronic equipment

Motor Parameters:

Design drawing:

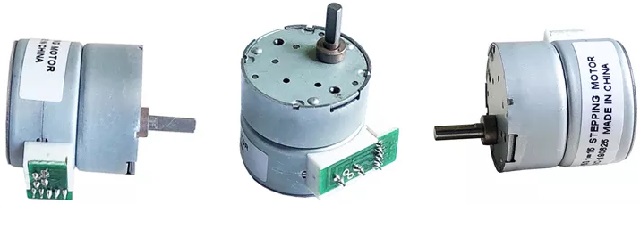

Product display:

Micro Geared Stepper Motor 2-phase 4-wirer Bipolar stepping motor

Application of stepper motors:

SM25-048S-30G stepper motor is used for precision control and is widely used in medical equipment, 3D printers, industrial precision control, automation equipment, valve applications, etc.

Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.
If this motor does not meet your installation needs, we also recommend other diameter motors for you, if you have any questions, you can feel free to contact me

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
