    High Torque 4 Cables 2 Phases 25mm Gearbox Reducer Stepper Motor

    Ask Lasest Price
    Brand Name : Vic-Tech
    Model Number : PM25S-048
    Certification : RoHS
    Price : $4~$8/Unit
    Payment Terms : T/T, Paypal, Credit card
    Supply Ability : 100000 pc/Month
    Delivery Time : 10~20 days after the sample is paid
    • Product Details
    • Company Profile

    High Torque 4 Cables 2 Phases 25mm Gearbox Reducer Stepper Motor

    High torque 4 cables 2 phases 25mm gearbox reducer stepper motor


    Description:

    PM25S-048 motor is a 25mm diameter motor with a gearbox on top.

    For this motor, its gear ratio is 15:1.

    We only have other gear ratios for to you choose, and it depends on your project requirement.

    Step angle of single motor is 7.5 degrees, and it takes 48 steps to rotate one turn.

    This is a bipolar motor with 2 phase and 4 wires.

    You can adjust motor’s resistance, cable length and connector type.


    Motor Parameters:

    Motor typePM motor+gearbox
    Model No.PM25S-048
    Step angle7.5°/15
    Gear ratio15
    Phase No.2
    Driving modeBipolar
    Resistance20Ω/phase
    Voltage6~9V DC
    Phase current400 mA/phase

    Design drawing:

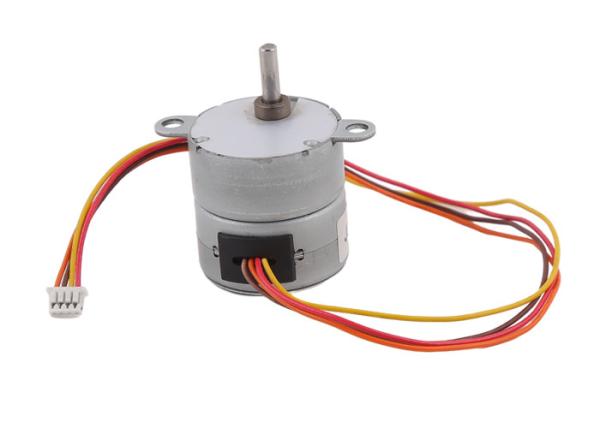

    Product display:


    Application of stepper motors:

    Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

    Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.


    Advantage of stepper motors:

    Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

    Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

    1. Precise control achievable, programmable

    2. Without electromagnetic interference & electrical sparks

    3. Small size

    4. Reasonable price

    5. Low noise

    6. Long service life


    Stepper motors are widely used among all industries.
