8mm Diameter Mini Gear Motor 5V Geared Stepper Motor And Metal Gearbox

18 degree step angle 8mm micro gearbox stepper motor with gearbox small stepper motor

VSM08-016-10G is a combination of 8MM diameter micro stepper motor and 8*10 precision metal gearbox, the reduction ratio can be customized according to customer needs.
The basic step angle of the motor is 18 degrees, that is, 20 steps per revolution. With the deceleration effect of the gearbox, the final angular resolution of the motor can reach 1.8~0.072 degrees, which can meet various needs and accurately control the rotation position of the venue.
The selectable transmission ratios are 1:5, 1:10,1:30 1:50, 1:60 ,1:100, 1:250. Customers can match the speed ratio according to different torque and speed requirements. Customers can set the stepping motor drive frequency according to their needs. A certain speed and torque can be achieved,
With the same gear reduction ratio, the speed and torque of the motor are different at different drive frequencies, and the drive can be set according to your needs.
The gear box of this product adopts the most advanced related parts processing equipment in the world, with high precision, high efficiency, low noise, and adopts reasonable and reliable technology, so that the product has better reliability.
The power input part of the motor and the standard stepper motor can adopt the form of probe structure, FPC, FFC, PCB cable and so on.
Part of the output of the motor can use round shaft, D shaft, screw shaft, etc., which can be customized according to customer installation requirements

SM08-10GF gearbox stepper main parameters:

SM10-816 gear stepper motor out drawing:

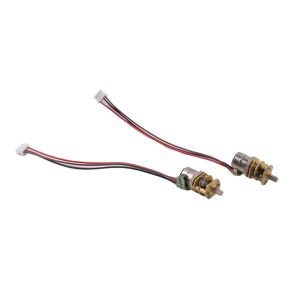

SM08-10GF gear stepper motor display:

SHAFT TYPES:

Out shaft standard as follows, also can customized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm
• D-cut Type: DIA3-D2.5 DIA4-D3 etc
• Screw Type: M3 M4 M5 Serial
• Trape Type
• I-cut Type: DIA3-I2 DIA4-I3
• Other Type: Shaft with a hole etc

TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Packaging: single carton packing, 600 pieces per box.

Shipping time:

DHL: 3-5 working days ；

UPS: 5-7 working days；

TNT: 5-7 working days；

FedEx: 7-9 working days；

EMS: 12-15 working days；

China Post: Depends on ship to which country；

Sea: Depends on ship to which country

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

The company has a quality management system: ISO9001-2000, and continuously improves the management level and quality control ability through various methods. Relevant personnel often receive internal and external professional training and training, so as to achieve continuous improvement in ability.

The company has a variety of series of products, each series has a complete product system, and has its own exclusive patented products. At the same time, related products and solutions can be customized for customers. At present, the most standardized and perfect product series are:

1. PM type stepping motor series, the motor diameter is 6 8 10 15 20mm, this series of motors can be equipped with a reduction box, and can be used to make a screw bracket type slider motor.

2. Hybrid stepper motor series, the size of the motor base is 14 20 28 35 42 57 86mm, etc. At the same time, it can be equipped with different sizes and speed ratio reduction boxes, and can be equipped with different types and lead screws. Motors can be equipped with encoders to improve control accuracy.

3. There are 8*10 10*12 12*13 1024 horizontal miniature reduction gearboxes for miniature metal gearboxes. All series of products with speed ratios from 2 to 1000 have been standardized and produced in batches.

4. BYJ series motors, standard products such as diameter 20 24 28 35mm can be produced.

5. Linear motor series, three series with diameters of 20, 25, and 36mm are all mass-produced, which can match fixed shaft types, through shaft types and screw external drive types. There are different screw outer diameters, tooth pitches, etc. different needs.

The company has a wide range of products and has the ability to customize. The company has in-house tooling and fixture making equipment, fast proofing speed, high reliability of product quality and reasonable price. Welcome new and old customers, friends at home and abroad for consultation, proofing and cooperation
