High precision 10mm diameter cylinder PM stepper motor with planetary gearbox

Description:

This is a 10mm diameter stepper motor attached with a planetary gearbox.

Gear ratio is determined by gearbox’s levels, and gear ratio on each level is exactly 4:1.

With more gear levels, and gear ratio gets bigger, and motor’s output speed is slower.

Motor’s output speed and torque is determined by gear ratio.

With bigger ratio, gearbox’s length is longer, and price is more expensive.

This is high end, high precision planetary gearbox, and its price is more expensive compared to other regular gearboxes.

Motor Parameters:

Gearbox Parameters:

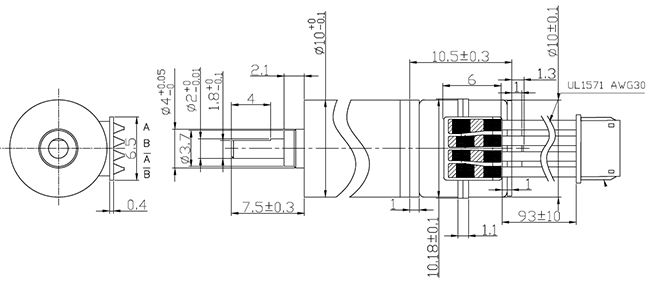

Design drawing:

Product display:

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
