VSM10-817G 10*24 mm horizontal gearbox 18 degrees micro PM stepper motor

Description:

This is 10mm diameter stepper motor attached with gearbox.

This gearbox is 10*24 mm horizontal gearbox, and the advantage is that, output shaft is pointing opposite direction as motor’s shaft.

It can save space in some cases.

We have two types of coil resistance: 20Ω and 40Ω/phase.

20Ω has higher torque, and 40Ω has lower current and power consumption.

Customers can choose suitable gear ratio based on their on torque/speed requirement.

With bigger ratio, output speed is slower, and output torque is bigger.

Motor Parameters:

Gearbox Parameters:

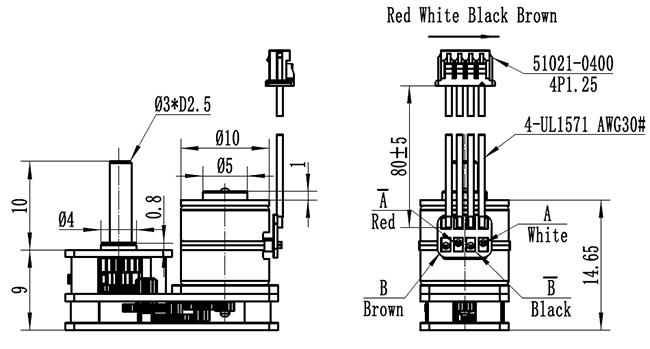

Design drawing:

Product display:

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Stepper motors are widely used among all industries.

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)

FAQ:

Question 1: Are you a manufacturer or a trader?

We are a manufacturer. We produce motors ourselves.

Question 2: Where is your factory? Can we visit your factory?

Our factory is located in Changzhou city. Feel free to visit us if you want.

Question 3: Do you provide customized samples/ free samples?

We are able to do customization on samples, and it cost extra customization cost.

No, we don’t send free samples.

Question 4: What’s the lead time on samples?

For samples in stock, lead time is within 3 days.

For samples not in stock, lead time is about 15 days.

For customized samples, lead time is about 25 to 30 days.

Question 5: What customization service do you provide?

We have a developing team for over 20 years experience.

We provide customization service on all sorts of motor’s components.

From motor’s slider, lead screw, gearboxes design.

To cable length, connector type, and FPC design.

Question 6: Can we sign a NDA contract if we want to develop a new product?

Yes, we can sign NDA contract and protect your confidentiality.

Feel free to contact us if you have a new project to develop.
