1.8 degree 2 phase high torque nema 24 stepper motor 60mm hybrid stepper motor

Description:

This is a NEMA24 60mm hybrid stepper motor.

This motor is available in different motor heights, from 56mm height to 100mm height.

The weight and torque of the motor are highly related to the height.

The standard output shaft of the motor is the D-axis, which can also be replaced with a trapezoidal screw shaft.

If you need a gearbox motor, the motor can also be connected to a gearbox, it is your choice.

Step angle: 1.8°

Temperature rise: below 80℃

Ambient temperature: -20℃～+50℃

Insulation resistance: min. 100MΩ, 500VDC
Dielectric Strength: 500VAC per minute

Shaft radial clearance 0.02 max (450 g load)

Shaft Axial Clearance: 0.08Max. (450 g load)
Maximum radial force: 75N (20mm from flange)

Maximum axial force: 15N

Motor parameters:

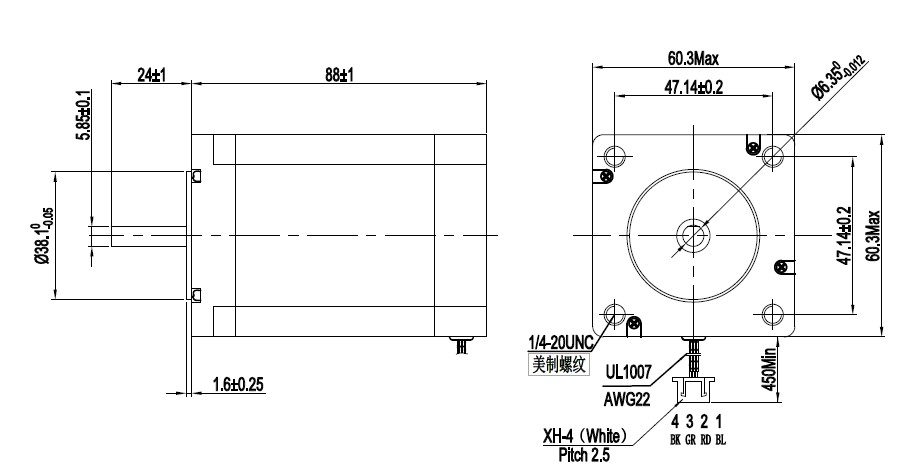

Design drawing:

Product display:

Application of stepper motor:
Stepper motors are used for precision control and are widely used in medical equipment, 3D printers, industrial precision control, automation equipment, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.

Advantages of stepper motors:
Stepper motors can be precisely controlled and brushless even without a closed-loop encoder/feedback system. Therefore, there are no electromagnetic interference and spark problems. In some cases, they can replace DC brush/brushless motors.
The stepper motor is easy to be controlled by the driver and has established its important position in the field of precision control.
1. Precise control and programmable
2. No electromagnetic interference and sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
