    2 Phases Bipolar Geared Stepper Motor With D Shaft / Lead Screw Shaft

    Ask Lasest Price
    Brand Name : Vic-Tech
    Model Number : SM08-GB10
    Certification : RoHS
    Price : $3.5~$7/Unit
    Delivery Time : 10~20 days after the sample is paid
    Payment Terms : T/T, Paypal, Credit card
    Supply Ability : 100000 pc/Month
    • Product Details
    • Company Profile

    2 Phases Bipolar Geared Stepper Motor With D Shaft / Lead Screw Shaft

    2 Phases Bipolar Geared Stepper Motor With D Shaft/Lead Screw Shaft & Molex 51021-0400 (1.25mm Pitch)

    Product Description:

    Geared Stepper Motor is a high torque stepper motor with gearbox, which has a 2 phase stepper motor of 8 mm diameter and a gearbox type of GB10 (8*10). It has a resistance of 40Ω/phase and a step angle of 18°/gear ratio, providing enhanced performance, accuracy, and high torque. It is perfect for applications that require precise and reliable motion control.

    Geared Stepper Motor is ideal for applications that require high torque output. It combines the accuracy and reliability of a stepper motor with the high torque of a gearbox. This makes it an excellent choice for applications where precise and reliable motion control is required.

    Geared Stepper Motor is an excellent choice for applications that require high torque output. It offers high torque output, accuracy, reliability, and precise motion control. It is perfect for applications that require precise and reliable motion control. It is a great choice for applications that require high torque output and precise and reliable motion control.

    Gearbox Parameters:

    Gear ratio20:150:1100:1250:1
    Precise ratio20.31350.31299.531249.943
    Tooth number14141414
    Gear levels3555
    Efficiency71%58%58%58%

    Design drawing:

    SM08-GB10 Small Geared Stepper Motor 8mm with 10*8 mm gearbox 0

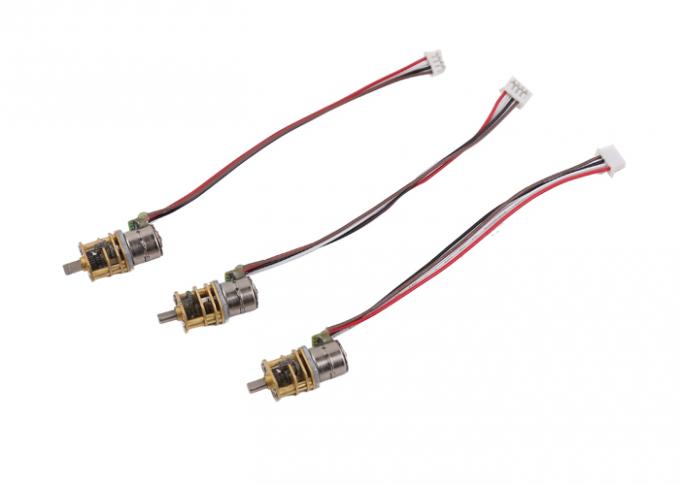

    Product display:

    2 Phases Bipolar Geared Stepper Motor With D Shaft / Lead Screw Shaft

    Features:

    • Product Name: Geared Stepper Motor
    • Step Angle: 18°/gear Ratio
    • Motor Type: Stepper Motor+ Gearbox
    • Motor Size: 8 Mm Diameter
    • Phase No: 2 Phases (bipolar)
    • Connector type: Molex 51021-0400 (1.25mm Pitch)
    • Highlight: mini stepper gear motor, high torque gearbox stepper motor, gearbox stepper motor, high torque geared stepper motor

    Technical Parameters:

    AttributeValue
    Phase No2 Phases (bipolar)
    Motor Size8 Mm Diameter
    Resistance40Ω/phase
    Model NoSM08-GB10
    Gearbox TypeGB10 (8*10)
    Output shaftD Shaft/lead Screw Shaft
    Step Angle18°/gear Ratio
    Connector typeMolex 51021-0400 (1.25mm Pitch)
    Motor TypeStepper Motor+ Gearbox
    KeywordsSmall Geared Stepper Motor, Gear Reduced Stepper Motor, Mini Geared Stepper Motor

    Applications:

    The Vic-Tech SM08-GB10 is a high torque stepper motor with gearbox, featuring a 2 phase stepper motor design. This gearbox stepper motor is RoHS certified, and has a minimum order of 1Unit. The price is $3.5~$7/Unit, and samples are packed in a paper box, while mass production products are packed in a standard corrugated carton. The delivery time is 10~20 days after the sample is paid, and payment terms include T/T, Paypal, Credit card. The supply ability of the Vic-Tech SM08-GB10 is 100000 pc/Month, and it has a 2 Phases (bipolar) output shaft, a D Shaft/lead Screw Shaft, and a resistance of 40Ω/phase. The model number of this stepper motor is SM08-GB10, and it has a 8 Mm Diameter motor size.

    Customization:

    Geared Stepper Motor

    Brand Name: Vic-Tech
    Model Number: SM08-GB10
    Place of Origin: China
    Certification: RoHS
    Minimum Order Quantity: 1Unit
    Price: $3.5~$7/Unit
    Packaging Details: Samples are packed with paper box, and mass production products are packed with standard corrugated carton.
    Delivery Time: 10~20 days after the sample is paid
    Payment Terms: T/T, Paypal, Credit card
    Supply Ability: 100000 pc/Month
    Model No: SM08-GB10
    Motor Type: Stepper Motor+ Gearbox
    Connector type: Molex 51021-0400 (1.25mm Pitch)
    Output shaft: D Shaft/lead Screw Shaft
    Gearbox Type: GB10 (8*10)

    Vic-Tech geared stepper motor is a high torque gearbox stepper motor that is designed specifically for applications where high levels of torque are required. It is a stepper motor with gear box that provides increased torque while maintaining accuracy and reliability. The gearbox stepper motor features a Molex 51021-0400 (1.25mm Pitch) connector, a D shaft/lead screw shaft, and a GB10 (8*10) gearbox type. It is RoHS certified and each unit is priced from $3.5 to $7.

    Support and Services:

    Geared Stepper Motor Technical Support and Service

    Our team of experienced technicians are available to provide technical support and service for Geared Stepper Motors. We offer a wide range of services to ensure that your motor is functioning as optimally as possible. Our services include:

    • Troubleshooting and repair of malfunctioning motors
    • Replacement of defective parts
    • Advanced diagnostics and testing of motor performance
    • Calibration and optimization of motor settings
    • Upgrades and modifications to ensure the motor meets your specific requirements

    Our technicians have the expertise and experience to provide superior technical support and service for Geared Stepper Motors. Contact us today to discuss how we can help you get the most out of your motor.

    Packing and Shipping:


    Samples are packed with foam sponge inside paper box.

    For mass production, products are packed in paper carton.

    For sea shipping (Mass production), cartons are packed on pallet.


    Shipping time:

    By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

    By 4PX express: 10~20 days

    Sea shipping: 40~60 days (depends on different countries)

    SM08-GB10 Small Geared Stepper Motor 8mm with 10*8 mm gearbox 3

    FAQ:

    Q: What is the brand name of the Geared Stepper Motor?
    A: The brand name of the Geared Stepper Motor is Vic-Tech.

    Q: What is the model number of the Geared Stepper Motor?
    A: The model number of the Geared Stepper Motor is SM08-GB10.

    Q: Where is the Geared Stepper Motor manufactured?
    A: The Geared Stepper Motor is manufactured in China.

    Q: Is the Geared Stepper Motor certified?
    A: Yes, the Geared Stepper Motor is certified with RoHS.

    Q: How many Geared Stepper Motors can be purchased?
    A: The minimum order quantity for the Geared Stepper Motor is 1 Unit.
